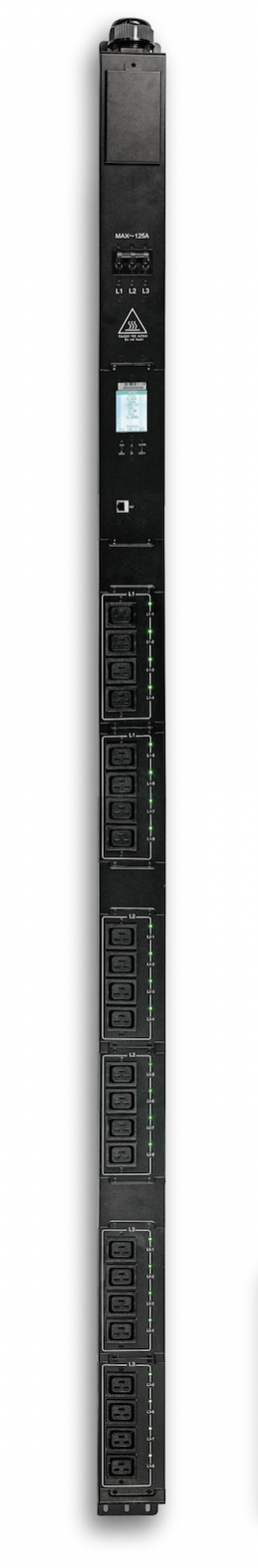

APDU SERIES-Smart miningPDU-24 ports C19 16A each outlet (TCP/IP remote control each outlet)

Description

Input Voltage
240V Single Phase(LNG)to 240V Single Phase
380V 3Phase(LLLNG)to 220V Single Phase
415V 3Phase(LLLNG)to 240V Single Phase
480V 3Phase(LLLNG)to 277V Single Phase
Input connector
150Ax5wires (or juction box ,input breaker optional)

frequency
50/60HZ
Total Current
Max 125A
Rating output Voltage
208-300VAC
Max output power for each outlet
Under 280V, Max 3328W per Outlet
Under 240V, Max 3840W per Outlet
Under 277V, Max 4432W per Outlet
Total output power
Max 4432Wx24
Soket Standard
24pcs C19(Customized)
Remote Control
TCP/IP,Hot-swap control meter
Breaker
125A 3P breaker with UL or CE
Demensions
LxWxH=2142*85*94mm
Net weight
18KG
Wire specification
UL certification. with flame retardant function
